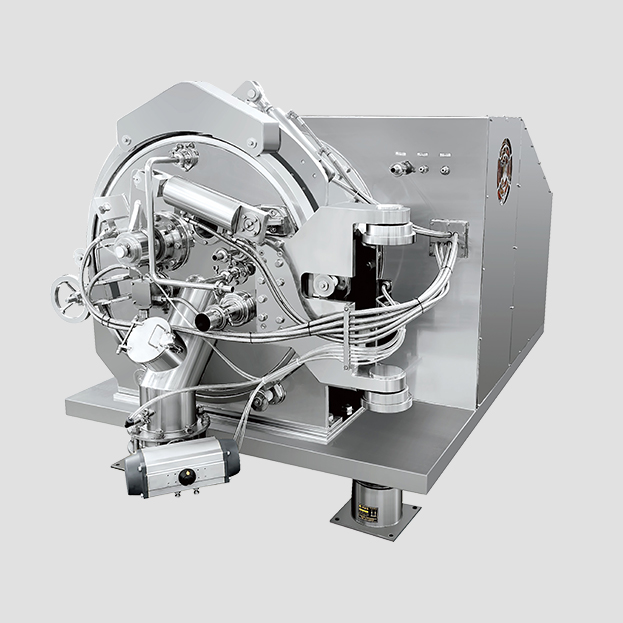

GK Horizontal Peeler Centrifuge
Our GK Horizontal Peeler Centrifuge is a batch-type filtering centrifuge engineered for high-purity, high-throughput solid-liquid separation. With a fully enclosed design and hydraulic / pneumatic scraper mechanism, the GK delivers fully automated cycle control — from screen washing, feeding, filtration, washing, dewatering, to scraper discharge — all under one PLC command.
Designed to handle fine particles, fragile crystals, and corrosive slurries where product purity, low moisture residual, and repeatable batch consistency are non-negotiable.
Quick Disassembly
Compact Design
General Settlement
Smooth Operation
Simple Structure
◆ Operating Principle
The GK Horizontal Peeler Centrifuge is an automated, batch-type filtering centrifuge that couples high-g centrifugal filtration with programmable mechanical scraping — delivering dry, intact solid cake and clean liquid in one fully PLC-controlled cycle.
◆ Main Features
● ull Stainless Steel Wetted Parts (SS304 / SS316L) — corrosion-resistant, GMP-compliant surface finish (Ra ≤ 0.8 μm optional), easy CIP cleaning.
● Full-Automatic PLC Control — programmable recipe storage; one-touch switch between full-auto, semi-auto, and manual modes.
● Hydraulic Scraper with Adjustable Thrust — uniform peeling force, low cake breakage rate (<2%), fully discharged residual <0.5%.
● Nitrogen Purge & ATEX/Ex-Proof Configuration — safe for flammable, toxic, or volatile-solvent slurries.
● Modular Screen & Filter Cloth — quick changeover between batches, reduces downtime by 40%.
● FD-Driven Main Motor + Energy Regenerative Braking (Optional) — 15–30% energy savings vs. conventional centrifuges.
● Dynamically Balanced Drum Assembly — low vibration (<4.5 mm/s RMS), longer bearing life, 24/7 continuous operation capable.
| Model | Drum Dia.(mm) | Volume(L) | Loading capacity(kg) | Max. RPM(rpm) | Max. RCF(g) | Power(kw) | Weight(kg) | Overall Dimensions(mm) |
| GK-600 | 450 | 45 | 60 | 2400 | 1925 | 22 | 3500 | 2430*1300*1610 |
| GK-800 | 600 | 88 | 120 | 1600 | 1145 | 30 | 3500 | 2520*1850*1310 |
| GK-1000 | 800 | 165 | 225 | 1350 | 1020 | 37 | 6000 | 2500*2100*2100 |
| GK-1250 | 1000 | 355 | 425 | 1200 | 1008 | 55 | 8000 | 3420*3300*2500 |
| GK-1350 | 1250 | 465 | 600 | 1200 | 1088 | 55 | 10000 | 2800*2100*2650 |
