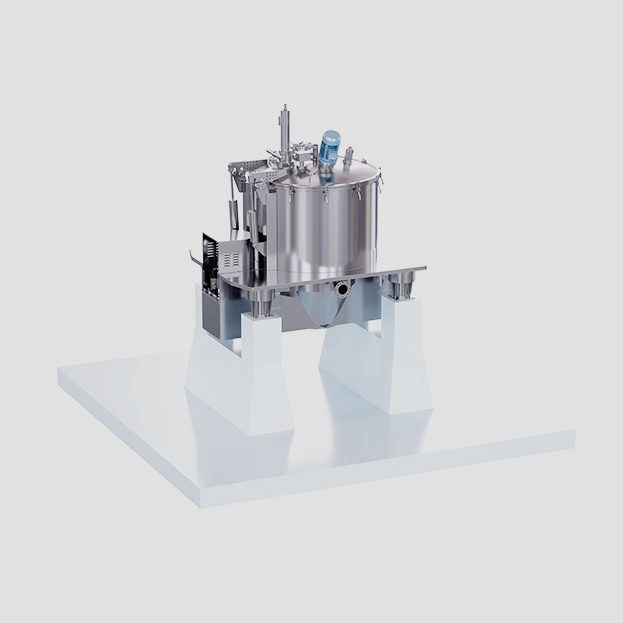

PLD Vertical Bag Pulling Centrifuge
Our PLD Vertical Bag Pulling Centrifuge is an upgraded vertical scraper bottom discharge centrifuge based on GK model. Its core innovation is an internal filter bag that can move up and down — creating an oscillation effect after scraping that thoroughly removes the residual cake layer.
Quick Disassembly
Compact Design
General Settlement
Smooth Operation
Simple Structure
◆ Operating Principle
During the process of discharging, the scraper acts, under the impact of which most material are discharged through the blanking hole on the bottom of drum to the outside. The remnant material layer will generate oscillation effect by the influence of automatic hanging bag mechanism inside the drum and then the remnant material layer will be removed.
◆ Main Features
● Automatic frequency converter to control speed.
● It has all advantages of common vertical scraper down discharging centrifuge.
● Full-automatic operation for hanging bag falling off and reset.
● The filter bag can move up and down inside the drum to produce oscillation effect and remove the remnant filter cake throughly.
● Big clamshell or shell whole reversible type are achievable according to users’ demands.
| Model | Drum Dia.(mm) | Volume(L) | Loading capacity(kg) | Max. RPM(rpm) | Max. RCF(g) | Power(kw) | Weight(kg) | Overall Dimensions(mm) |
| PLD-800 | 800 | 100 | 135 | 1200/1500 | 645/1008 | 7.5/11 | 2000 | 1700*1300*1950 |
| PLD-1000 | 1000 | 175 | 235 | 1000/1200 | 560/806 | 11/15 | 3600/4000 | 2050*1600*2680 |
| PLD-1250 | 1250 | 400 | 530 | 1000/1200 | 700/1008 | 22/30 | 5100/5500 | 2400*1800*2830 |
| PLD-1400 | 1400 | 600 | 700 | 1000/1150 | 785/1036 | 30/37 | 7500/8000 | 2800*2100*3150 |
| PLD-1600 | 1600 | 800 | 1050 | 850 | 647 | 37 | 11000 | 3150*2400*3600 |
| PLD-1800 | 1800 | 1250 | 1500 | 800 | 645 | 55 | 1700 | 3500*2500*3400 |
